What is a two-dimensional measuring instrument?

The second dimension refers to the two-dimensional measurement of the optical image measuring instrument, mainly the measurement of the two dimensions of the optical 2D plane. A complete measurement system. When the object to be measured is placed on the measuring platform of the instrument, the light source shines light on the object to be measured, and reflects it back to the sensor of the camera to form a two-dimensional image. Through the processing and analysis of this image, the length of the object can be measured , width, diameter, angle and other geometric parameters. The calculation of the software module based on the spatial geometry can instantly obtain the desired result, and generate a graph on the screen for the operator to compare the graph and shadow, so that the possible deviation of the measurement result can be visually distinguished.

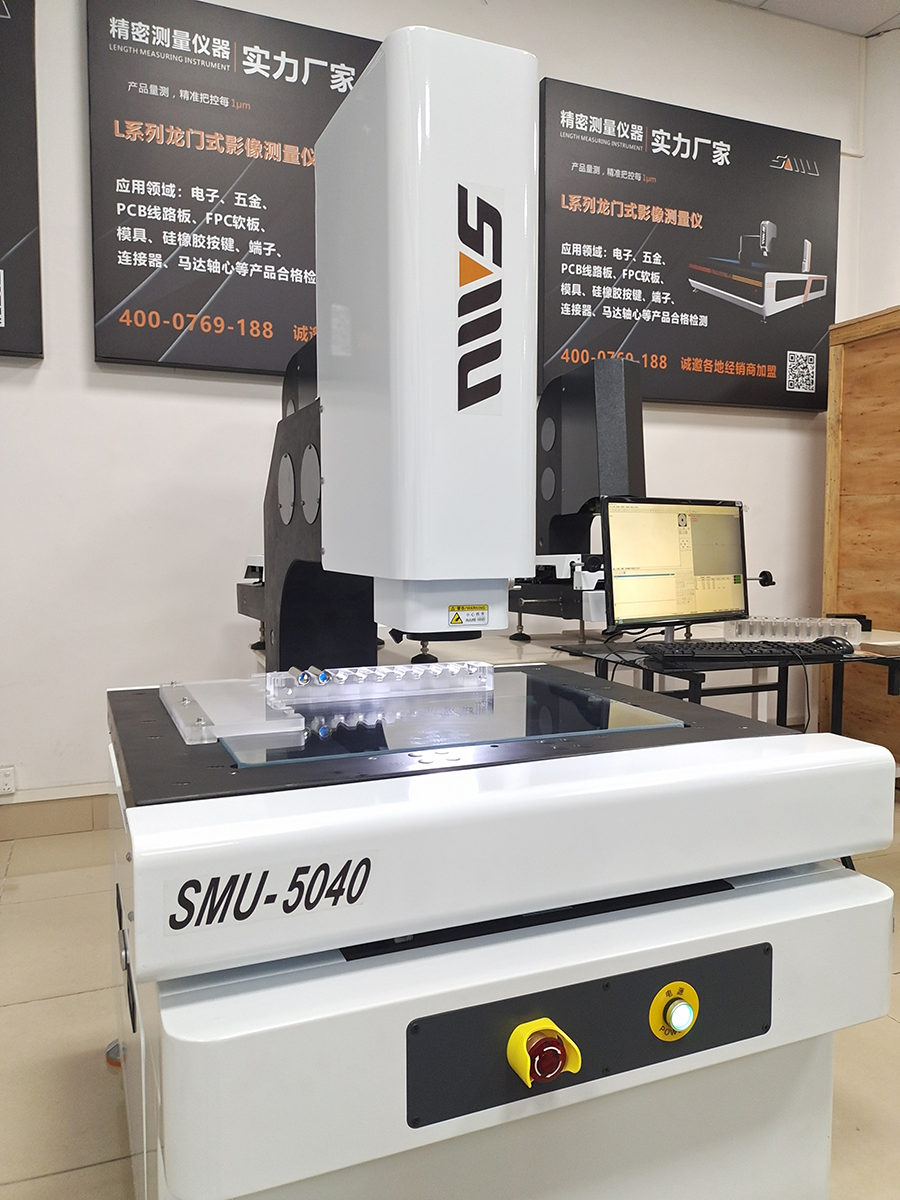

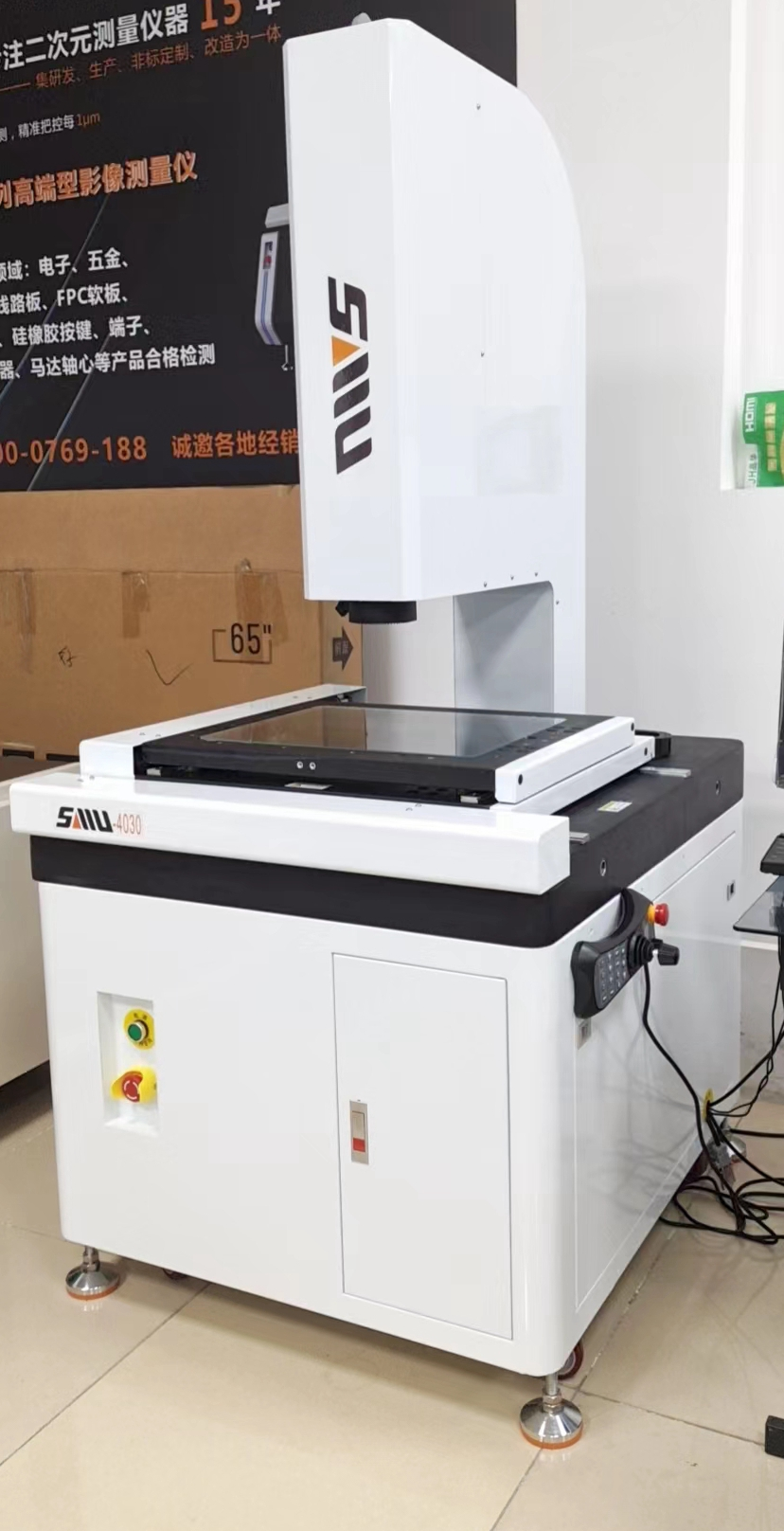

图片 1 图片 2
