PPG-60403ELS-800KG Automotive power battery thickness measuring machine

Short Description:

PPG is suitable for measuring the thickness of lithium batteries and automotive power batteries, as well as measuring other soft sheet products. It uses servo motor pressure and optical sensor readings to make the measurement results more accurate.


Product Detail

Product Tags

Introduction

PPG-60403ELS-800KG is suitable for measuring the thickness of lithium batteries, automotive power batteries and other non-battery thin products.  It uses servo motor to provide pressure, so that the product measurement is more accurate.

Operating steps

The specific measurement steps of the high pressure electric PPG battery thickness gauge are as follows:

1. Turn on the power of the machine

2. The machine returns to the zero position and performs height correction

3. Set the measurement procedure (including setting the required measurement force value, measurement thickness and running speed etc.)

4. Put the product into the test platform

5. Start the test

6. Display test data and export reports

7. Replace the next product to be tested

The Main Accessories

1. Sensor: Open grating encoder.

2. Coating: baking paint.

3. Parts material: steel, 00 grade cyan marble.

4. Housing material: steel, aluminum.

Technical parameters

S/N

Item

Configration

1

Effective test area

L600mm × W400mm

2

Thickness range

0-30mm

3

Working distance

≥50mm

4

Reading resolution

0.0005mm

5

Flatness of marble

0.005mm

6

Measurement error of one position

Put a PPG standard gauge block between the upper and lower pressure plates, repeat the test 10 times at the same position, and its fluctuation range is less than or equal to 0.02mm.

7

Comprehensive measurement error

Place a PPG standard gauge block between the upper and lower platens, and measure the center point of the platen and the dimensions of the 4 corners. The fluctuation range of the measured value of the center point and the four corners minus the standard value is less than or equal to 0.04mm.

8

Test pressure range

0-800kg

9

Pressure method

Use servo motor to provide pressure

10

Work beat

<30 seconds

11

GR&R

<10%

12

Transfer method

Linear guide, screw, servo motor

13

Power

AC 220V 50HZ

14

Operating environment

Temperature:23℃±2℃

Humidity:30~80%

Vibration:<0.002mm/s,<15Hz

15

Weigh

350kg

16

***Other specifications of the machine can be customized.

Pictures of the device

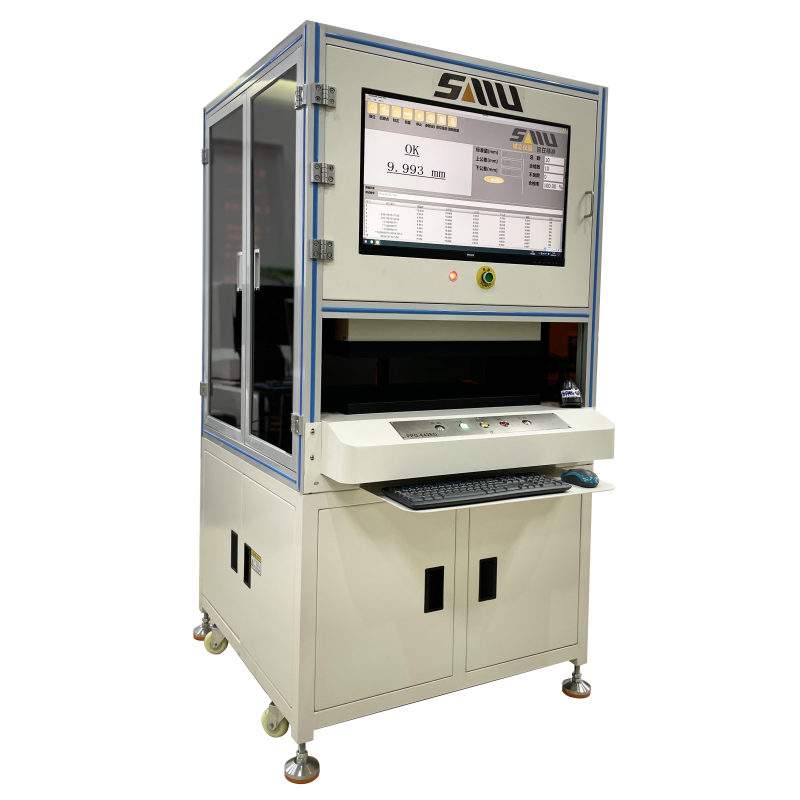

semi-automatic lithium battery thickness gauge

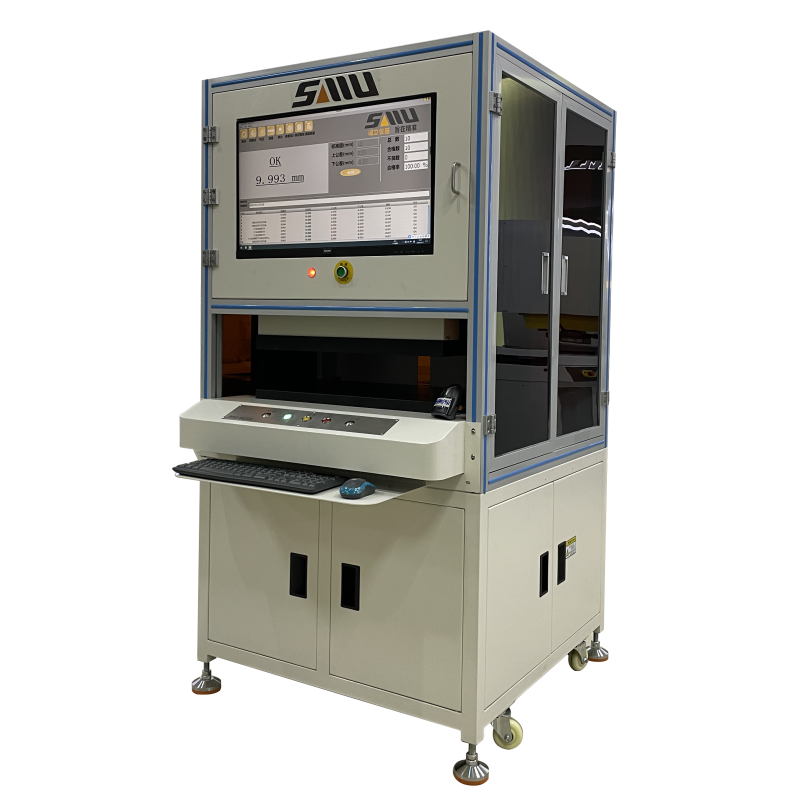

semi-automatic thickness gauge
