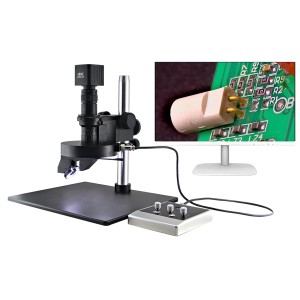

Automatic 360 Degree Rotation 3D Video Microscope

Short Description:

◆ 3D video microscope with 360-degree rotatable viewing angle from Chengli Technology.

◆ It is a photoelectric measuring system with high precision and efficiency which is widely used in various precision industries.


Product Detail

Product Tags

Products Video

Parameters & Features

Model 3DVM-A
Optical magnification 0.6-5.0X zoom body with 0.5X C mount
Total magnification 14-120X (based on 15.6 inch 4K monitor)
Working distance 2D:86mm   3D:50mm
Ratio 1:8.3
Field of view 25.6×14.4-3.0×1.7mm
Lens mount Standard C mount
Observe mode 2D observation
Automatic 360 degree rotation 3D observation
Push and pull
Sensor 1/1.8” SONY CMOS
Resolution 3840×2160
Pixel 8.0MP
Frame 60 FPS
Pixel size 2.0μm × 2.0μm
Output HDMI output
Memory function Take photo and video to U disk
Measuring function Support measuring of line, angle, circle, radian, rectangle, polygon etc., precision reaches the level of micron.
Front light 267 PCS LED,color temperature 6000K,Brightness 0-100% adjustable
Side light 31 PCS LED, color temperature 6000K,Brightness 0-100% adjustable
Base size 330*300mm
Focus Coarse focus
Height of post 318mm

Quality System

1. Establish the quality management system based on ISO9001, improve quality inspection, and ensure that all the finished products are qualified.

2. All our measuring machines are with CE certification.

3. All our measuring machines are assembled and adjusted with linear accuracy, so that the instrument accuracy is guaranteed by hardware assembly and adjustment to the greatest extent.

4. We has provided professional and complete measurement solutions for many large and medium-sized enterprises at home and abroad, and has won the trust of customers!

5. Our professional technical service team is familiar with the principle, structure, assembly, and software debugging of the instrument, freeing customers from worries!

3D rotating video microscope

Application

Suitable for electronic, molding, press, spring, screw, tool, plastic, rubber, valve, camera, bicycle, motor parts, PCB, conduction rubber, interference board, lead frame and other precision industries

FAQ

What is the average lead time?

For samples, The lead time is about 3 days for manual machines, about 5-7 days for automaticmachines, and about 30 days for bridge series machines. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

What kinds of payment methods do you accept?

You can pay to our bank account or paypal: 100%T/T in advance.
