Large Vision 2D/3D Microscope Machine Vision Systems Manufacturers

Short Description:

◆Two observation modes, 2D and 3D, can be switched by push and pull, which is simple and convenient.

◆3D can rotate 360 degrees to observe the sample in all directions.

◆When switching between 2D and 3D, the working distance remains the same, and there is no need to refocus.


Product Detail

Product Tags

Products Video

Parameters & Features

Model

SMU-6503D

Camera lens













Optical magnification 2D:0.23X-1.88X 3D:0.09X-0.75X
Lens magnification 0.6-5.0X
CCD interface magnification 0.5X
Objective lens magnification 2D:0.75X 3D:0.3X
Working distance 2D:105mm 3D:50mm
Field of vision 2D:30x17mm-3.7x2mm 70x45mm-9x5mm
Lens interface C standard interface
camera













Image sensor 1/2” SONY CMOS
Pixel size 3.75μm x 3.75μm
Resolution ratio 1920x1080
Pixel 200万
Frames per Second 60fps
Output HDMI
Operational approach Mouse operation
Memory function Save photos or videos to USB flash drive
Light source













zone control Four zones control, brightness 0-100% adjustable.
Light color white
LED quantity 208 PCS
Illuminance 15000 Lux
Wavelength 455-457.5nm
Output voltage 12V
Output rating 8-10W
Measurement inner diameter 40mm,  outside diameter 106mm ,height 19mm
Trestle



Focusing mode crude regulation
Bottom plate size 330*300mm
Height of column 318mm

Product Description

◆Ultra-large field of view, greatly improving the detection efficiency, 3D field of view up to 70mm, large depth of field and no dark angle in the lowest magnification image.

Large Vision 2D3D Microscope3

✔ High resolution continuous zoom lens, 1:8.3 large zoom ratio.

✔ With Sony's new generation CMOS high-definition camera with high dynamic range, excellent color rendition.

✔ 1/2 "image sensor with strong photo sensitivity.

✔ HDMI image output,1920*1080 high-resolution,60fps.

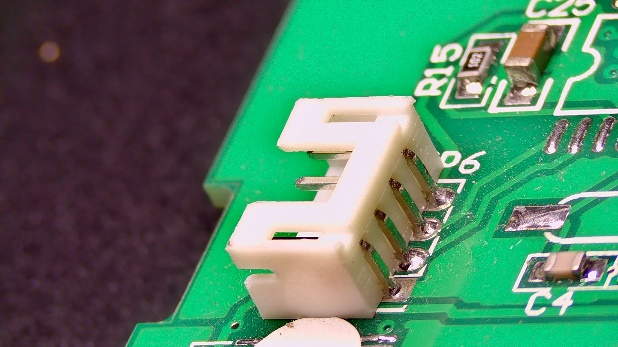

Large Vision 2D3D Microscope (5)

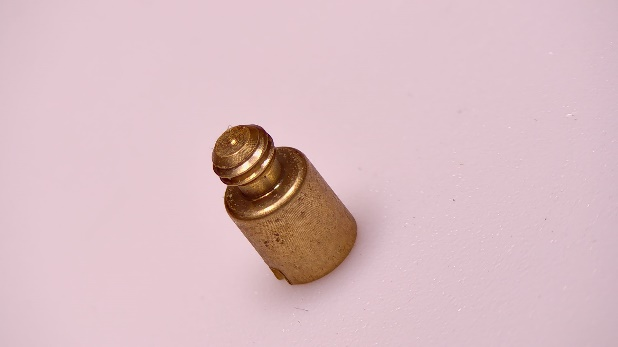

Large Vision 2D3D Microscope (7)

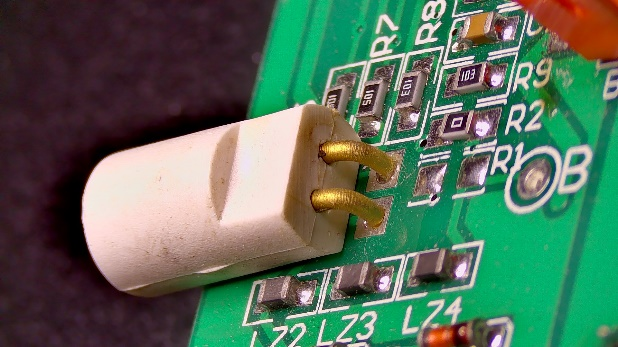

Large Vision 2D3D Microscope (6)
Large Vision 2D3D Microscope (4)
Large Vision 2D3D Microscope (3)

● Two observation modes, 2D and 3D, can be switched by push and pull, which is simple and convenient.

● 3D can rotate 360 degrees to observe the sample in all directions.

● When switching between 2D and 3D, the working distance remains the same, and there is no need to refocus.

● Lens focusing performance, continuous zoom after focusing each magnification is a clear image.

Power Supply

Large Vision 2D3D Microscope (1)
Large Vision 2D3D Microscope (2)

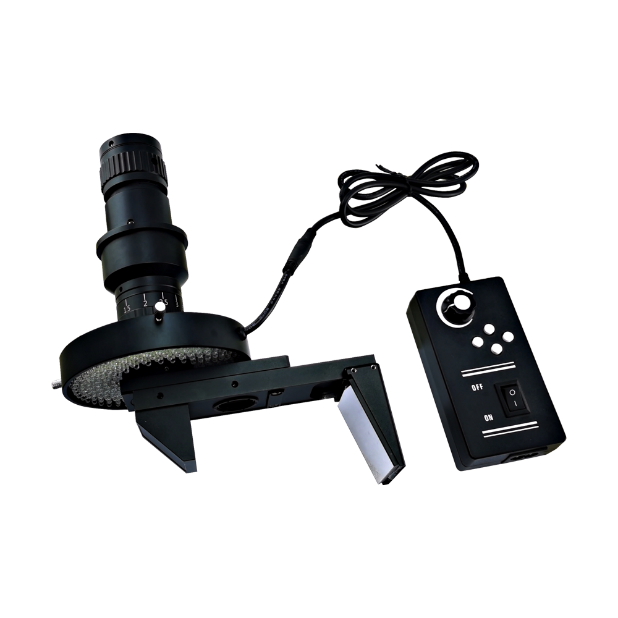

0.6-5.0X continuous zoom 2D/3D lens

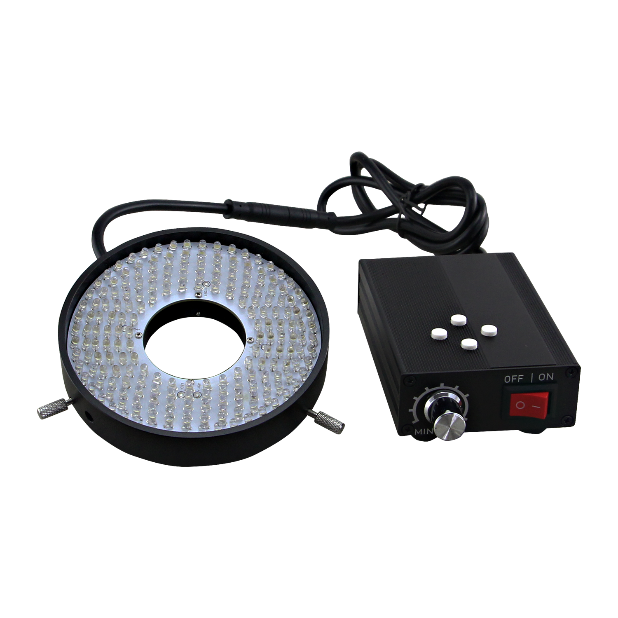

Four-zone light source, 0-100% brightness adjustable
